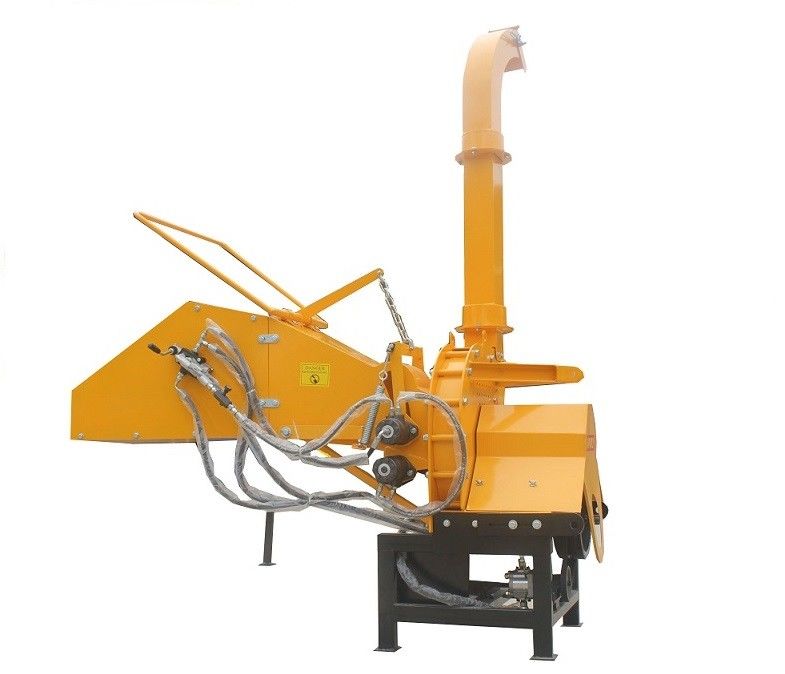

High Efficient Industrial Wood Chipping Machine Pto Wood Chipper
Quick Detail:
1. CE approved
2. Durable Chromium CR-12 blade
3. Dual hydraulic automatic feeding or mechanical feeding
4. 8-9 CBM/H efficiency
Description:
1. 3PL wood chipper, driven by tractor PTO
2. Cutting diameter size 1cm~25cm, up to 8 inch, 8-9CBM/H cutting capacity.
3. Discharge hood can rotate in 360 degrees. Easy swivel discharge chute.
4. Feeding system: TH-8 with hydraulic motor feeding system, TM-8 with mechanical roller feeding system.
5. 2 year warranty, heavy duty cast steel bearing housings. Main shaft supported by 3 bearings.
Applications:
The small chips made by the wood chipper can be used for animal bedding, for the forestry and soil protecting, for new energy making, for compost and forcharcoal. Some customers use their colored garden waste chips, cover the soil and made the garden beautiful; some of them use the garden waste chips in the fireplace.
Specifications:
| Model No | TH-8 | TM-8 |
| Max diameter of feeding | 8” (200mm) | |
| Matched Tractor Power | Tractor (18~100hp, 540/720 rpm) | |
| Diameter of Chipper disk | 600mm | |
| Turing speed of chipper disk | 1080rpm / 1410rpm | |
| Feeding system | Hydraulic Feeding | Feeding by worm Reduction |
| Adjustable speed | Gear (4mm/s) | |
| Stop-Reverse-Forward Function | Only Forward Function | |
| Blade material | Durable chromium CR-12 | |
| Output sawdust size | Thickness < 4mm | |
| Rotation Angle of Discharge Spout | 360° | |
| Weight | 450KG | 420KG |
| Working efficiency | 8~9 m³/h | 6~9 m³/h |
| Volume of Tank | 26L | / |
| Package Dimension | 1150*900*1300mm | 1150*900*1300mm |
Competitive Advantage:
1. CE approved
2. Baking paint
3. Dural hydraulic feeding
4. Durable chromium CR-12 blade
